• Auto High-Beam Headlamps
• Electronic Pwr Asst Steer
• Forward Collision Warning
• Hill Start Assist
• Lane-Keeping System
• Post-Collision Braking
• Pre-Collision Assist W/Aeb
• Selectable Drive Modes
• Side-Wind Stabilization

• Air Conditioning
• Assist Handles - A-Pillar
• Center Console
• Locking Glove Box
• Powerpoint - 12V (Front)
• Steering - Tilt/Telescopic
• Tachometer

• 3 Point Safety Belts
• Advancetrac With Rsc
• Airbags – Front, Side And Safety Canopy System
• Brakes - 4Wheel Disc W/Abs
• Securilock Anti-Theft Sys
• Sos Post-Crash Alert Sys
• Tire Pressure Monit Sys

Interior Upgrade Package – Cutaway/Chassis Cab

501A

Tow/Haul Mode with Trailer Wiring Provisions

Exterior Upgrade Package – SRW

• ORDER CODE 501A

• Mileage
• Fuel Economy Est-Combined (MPG): - TBD -
• EPA Fuel Economy Est - City (MPG): - TBD -
• EPA Fuel Economy Est - Hwy (MPG): - TBD -
• Electrical
• Maximum Alternator Capacity (amps): 250
• Weight Information
• Base Curb Weight (lbs): 4223
• Gross Axle Wt Rating - Front (lbs): 4130
• Gross Axle Wt Rating - Rear (lbs): 5750
• Curb Weight - Front (lbs): 2971
• Curb Weight - Rear (lbs): 1252
• Gross Vehicle Weight Rating Cap (lbs): 9500
• Gross Combined Wt Rating (lbs): 12000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6600
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 660
• Maximum Trailering Capacity (lbs): 6600
• Suspension
• Suspension Type - Front: Strut
• Suspension Type - Rear: Leaf
• Axle Type - Front: Independent
• Axle Type - Rear: Rigid Axle
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.1
• Rear Brake Rotor Diam x Thickness (in): 12.1
• Tires
• Front Tire Size: LT235/65SR16
• Rear Tire Size: LT235/65SR16
• Revolutions/Mile @ 45 mph - Front: 720
• Revolutions/Mile @ 45 mph - Rear: 720
• Wheels
• Front Wheel Size (in): 16 X 6.5
• Rear Wheel Size (in): 16 X 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Rack-Pinion
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 25.1
• Exterior Dimensions
• Wheelbase (in): 138
• Length, Overall (in): 223.3
• Width, Max w/o mirrors (in): 80.8
• Height, Overall (in): 87.3
• Overhang, Front (in): 40.3
• Overhang, Rear w/o bumper (in): 45.1
• Cab to Axle (in): 82.6
• Cab to End of Frame (in): 127.7
• Ground Clearance, Front (in): 5.5
• Ground Clearance, Rear (in): 5.5
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 44.9
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 67.9
• Front Hip Room (in): 60.7
• Summary

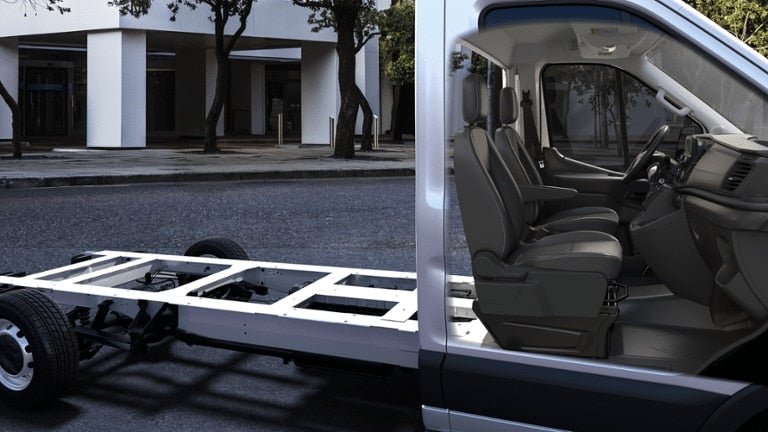

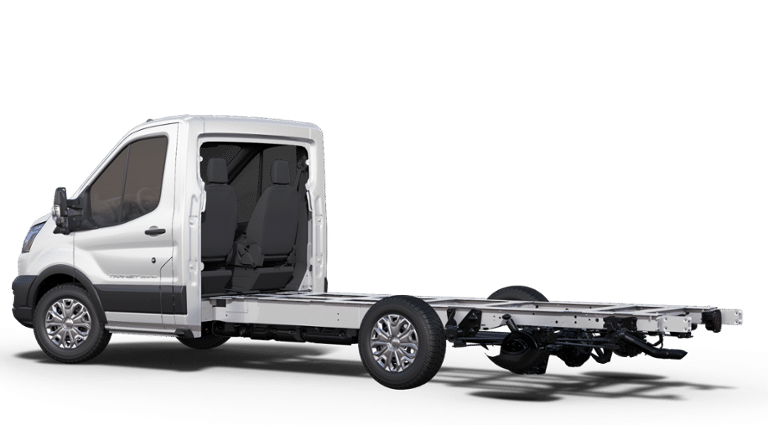

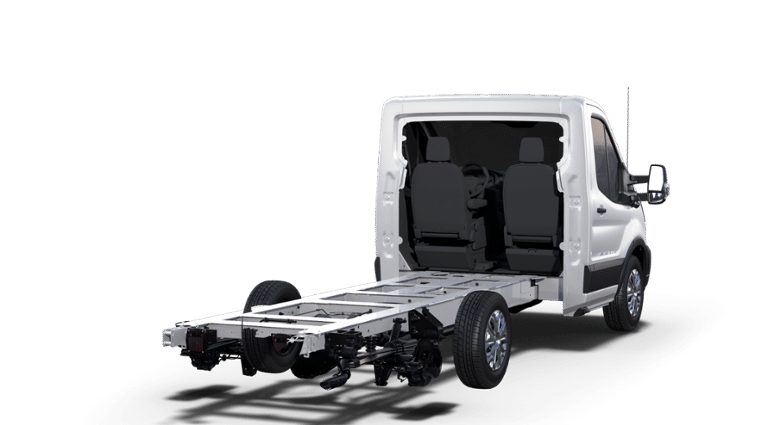

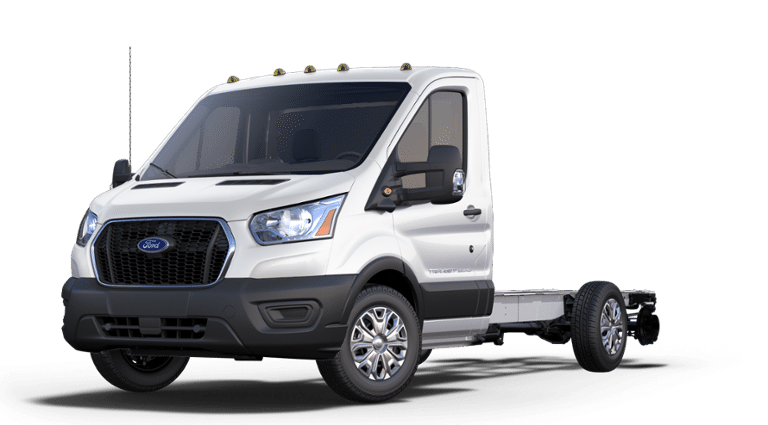

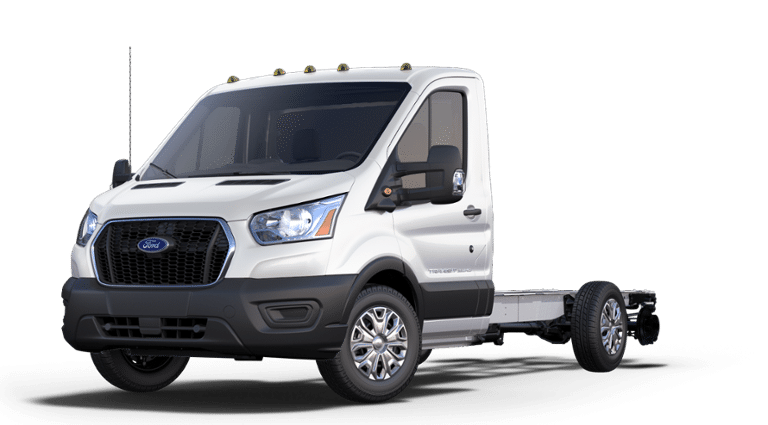

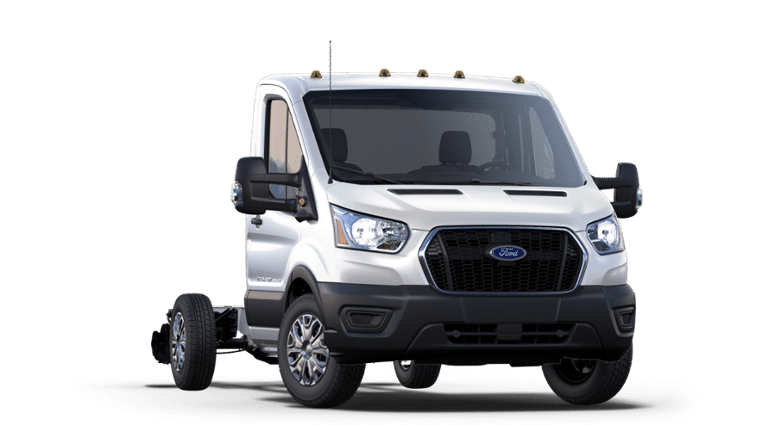

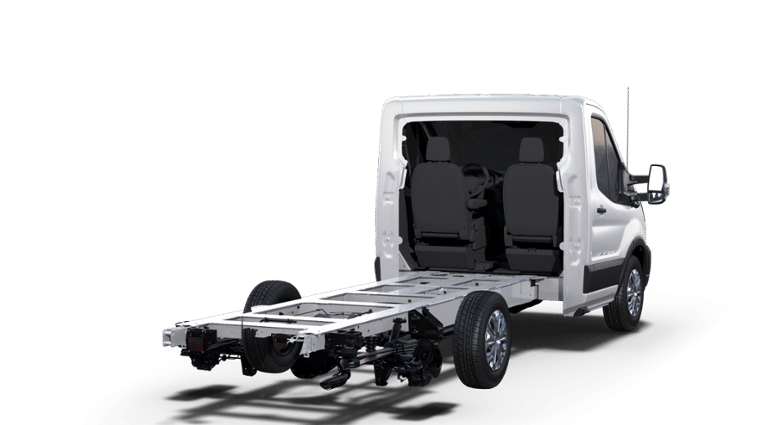

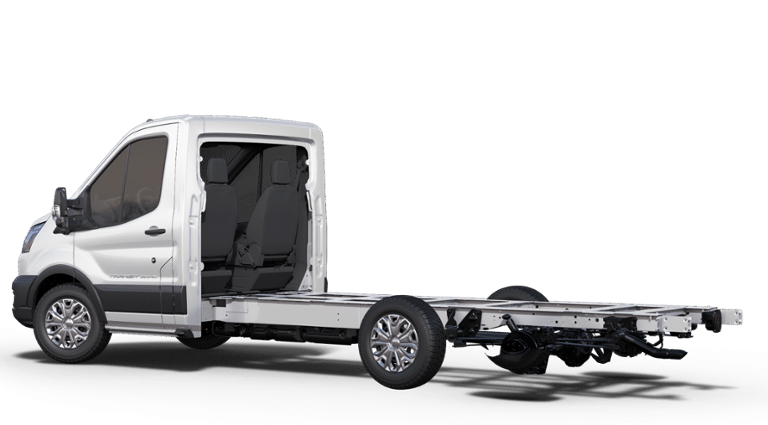

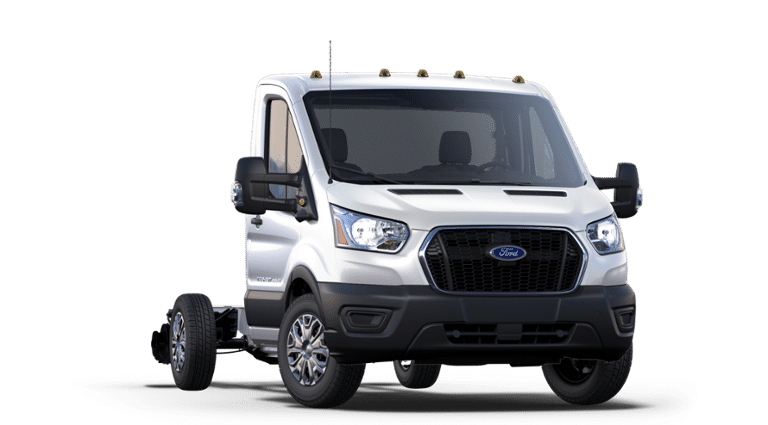

• Vehicle Name: Ford Transit Cutaway
• Body Style: Chassis
• Body Code: H
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
